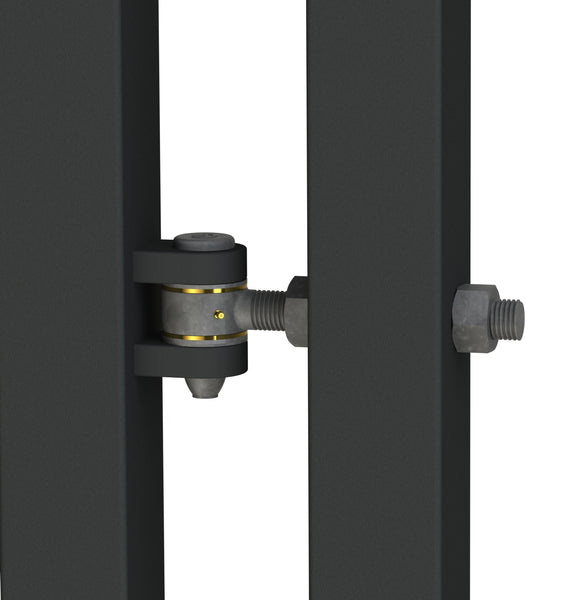

Gatemaster Superhinge – Heavy-Duty Adjustable Gate Hinge
SH16The Gatemaster Superhinge is one of the most durable and reliable heavy-duty gate hinges on the market. Precision-engineered and tested to over 500,000 openings on large, heavy gates with no signs of wear, the Superhinge delivers exceptional long-term performance for industrial, commercial, and automated metal gates.
Built with brass bearings for smooth, low-friction operation, this hinge provides effortless movement and outstanding longevity — ideal for high-use and high-security gate systems.
Key Features:
Exceptional Durability: Tested to 500,000 cycles, equivalent to 50 years of use at 25 openings per day.
High Load Capacity: Supports metal gates up to 900 kg, available in multiple sizes for different gate designs.
Smooth, Low-Friction Movement: Brass bearings ensure quiet, reliable performance for both manual and automated gates.
Adjustable Installation: Includes an adjustable bolt for precise on-site fitting and easy alignment.
Corrosion-Resistant & Maintenance-Free: Built for demanding outdoor environments and long service life.
The Gatemaster Superhinge represents the pinnacle of gate hinge engineering — a trusted, long-lasting solution for heavy metal gates, industrial entrances, and high-security applications

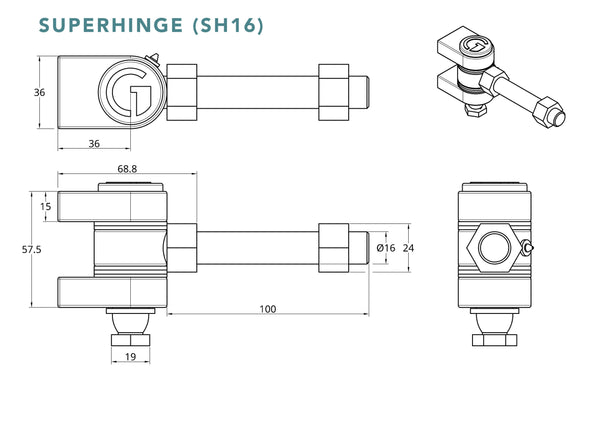

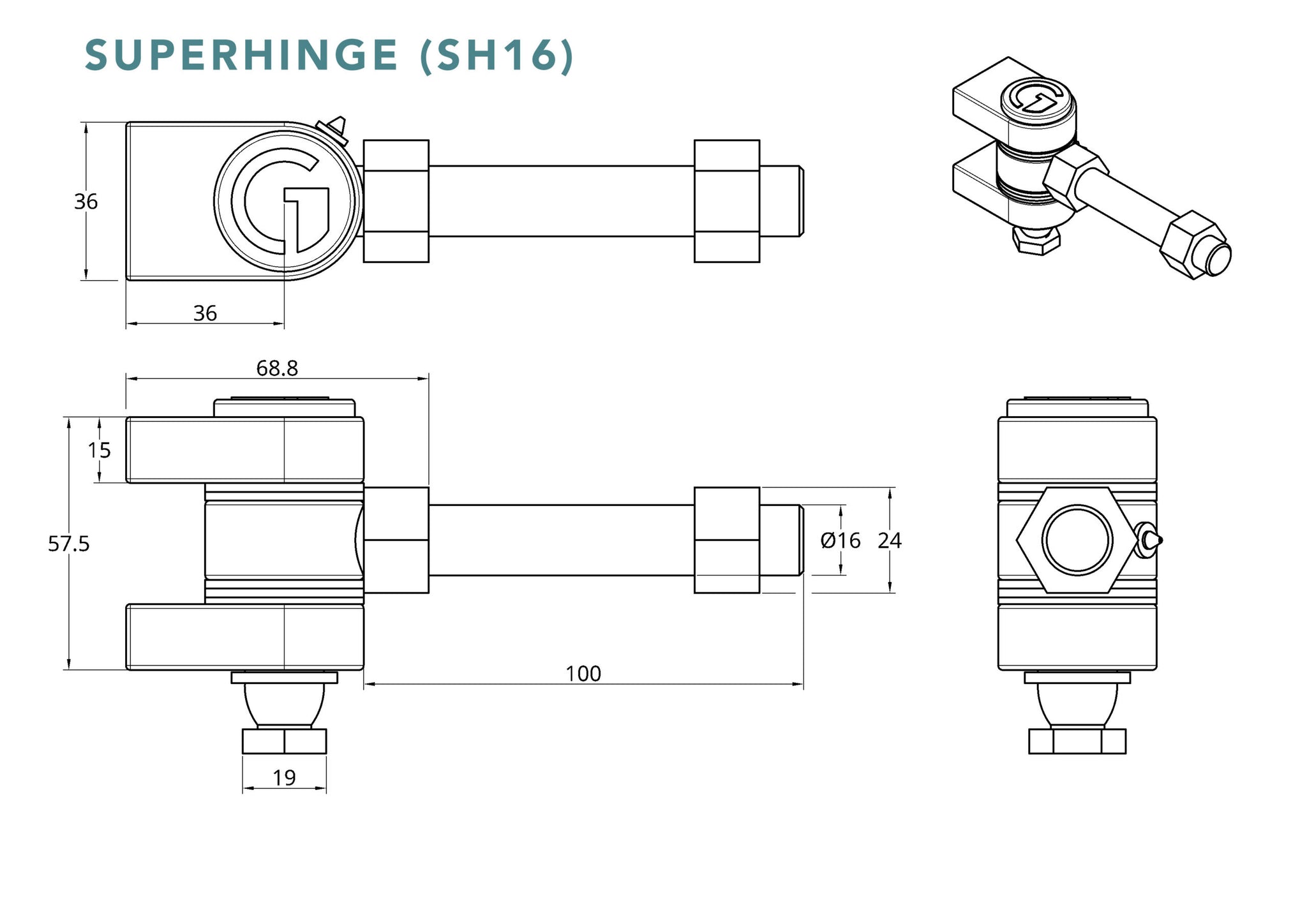

SH16 – 5/8" X 4" – 330LBS per pair of hinges

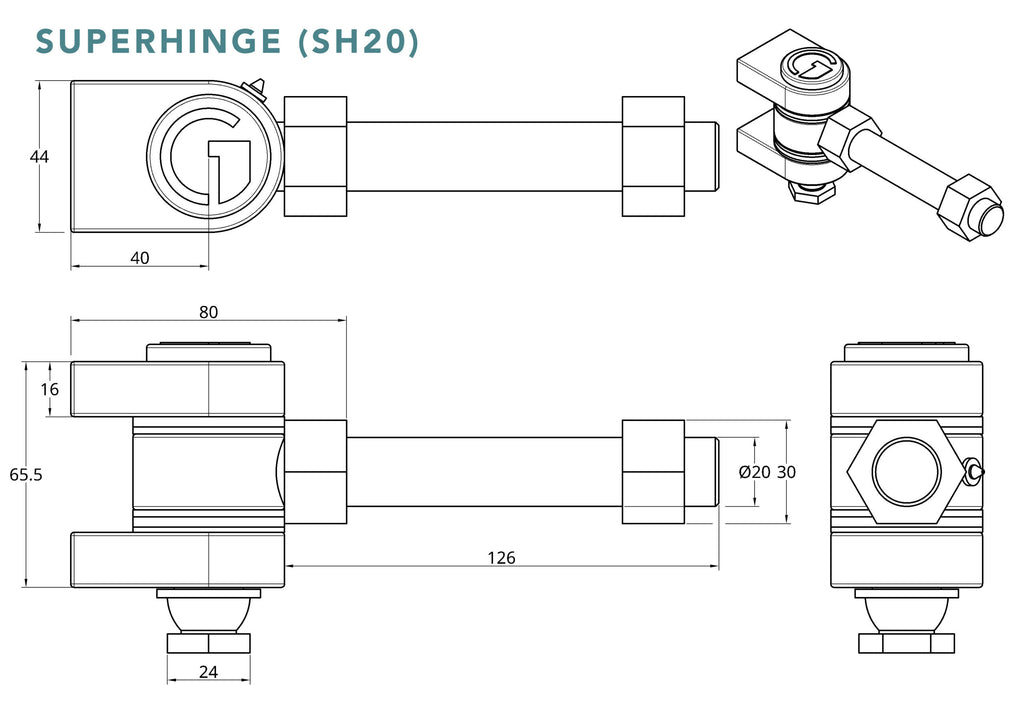

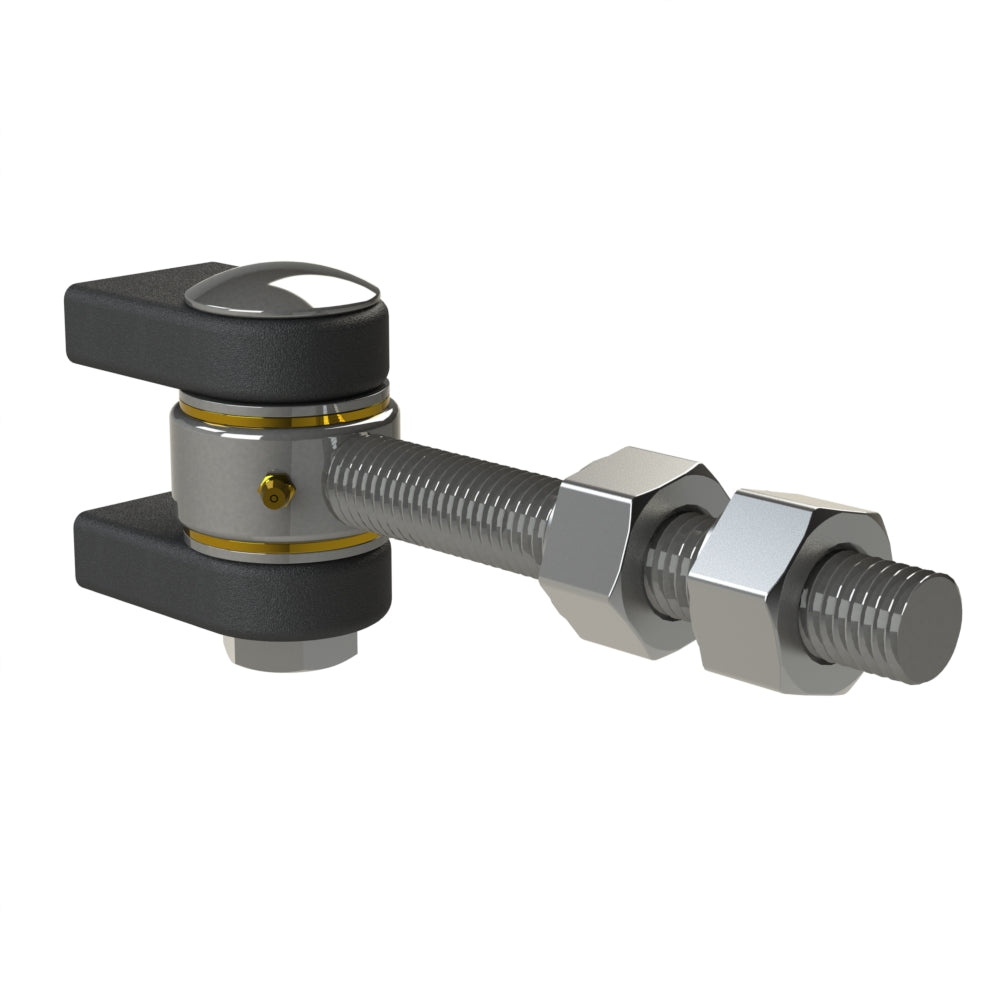

SH20 – 3/4" X 5" – 660LBS per pair of hinges

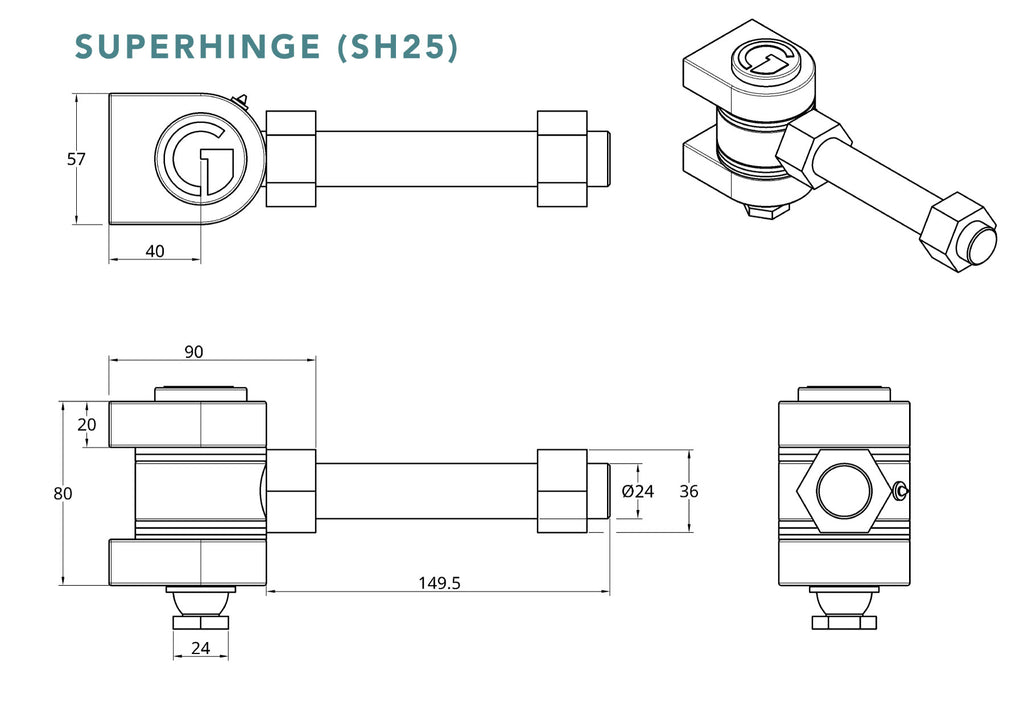

SH25 – 1" X 6" – 990LBS per pair of hinges

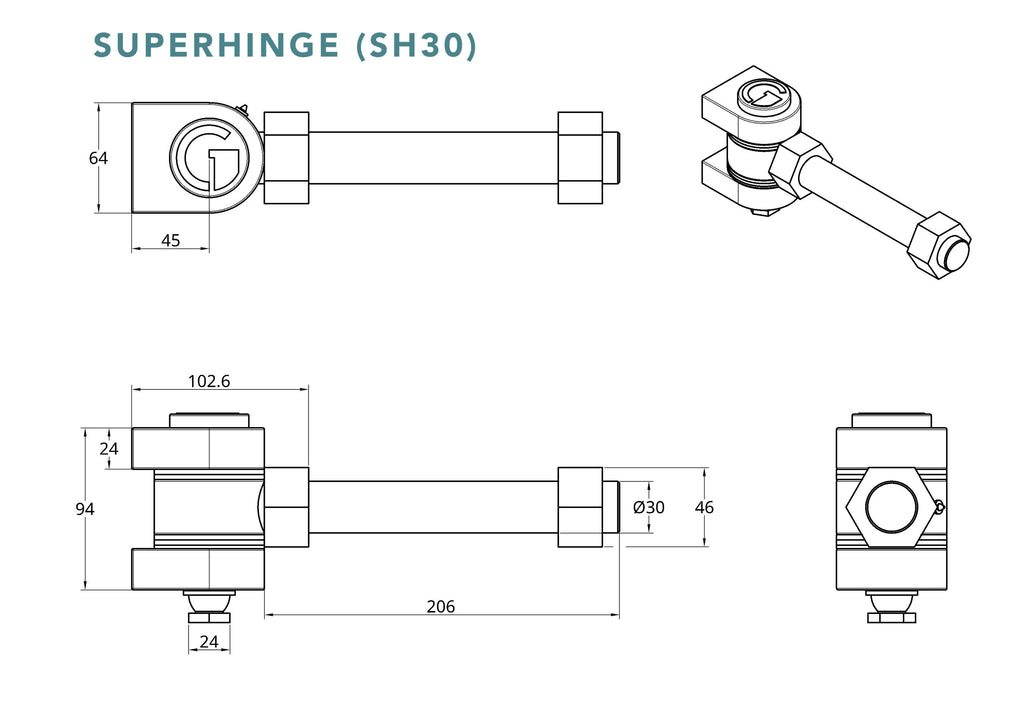

SH30 – 1 1/4" X 8" – 1980LBS per pair of hinges
